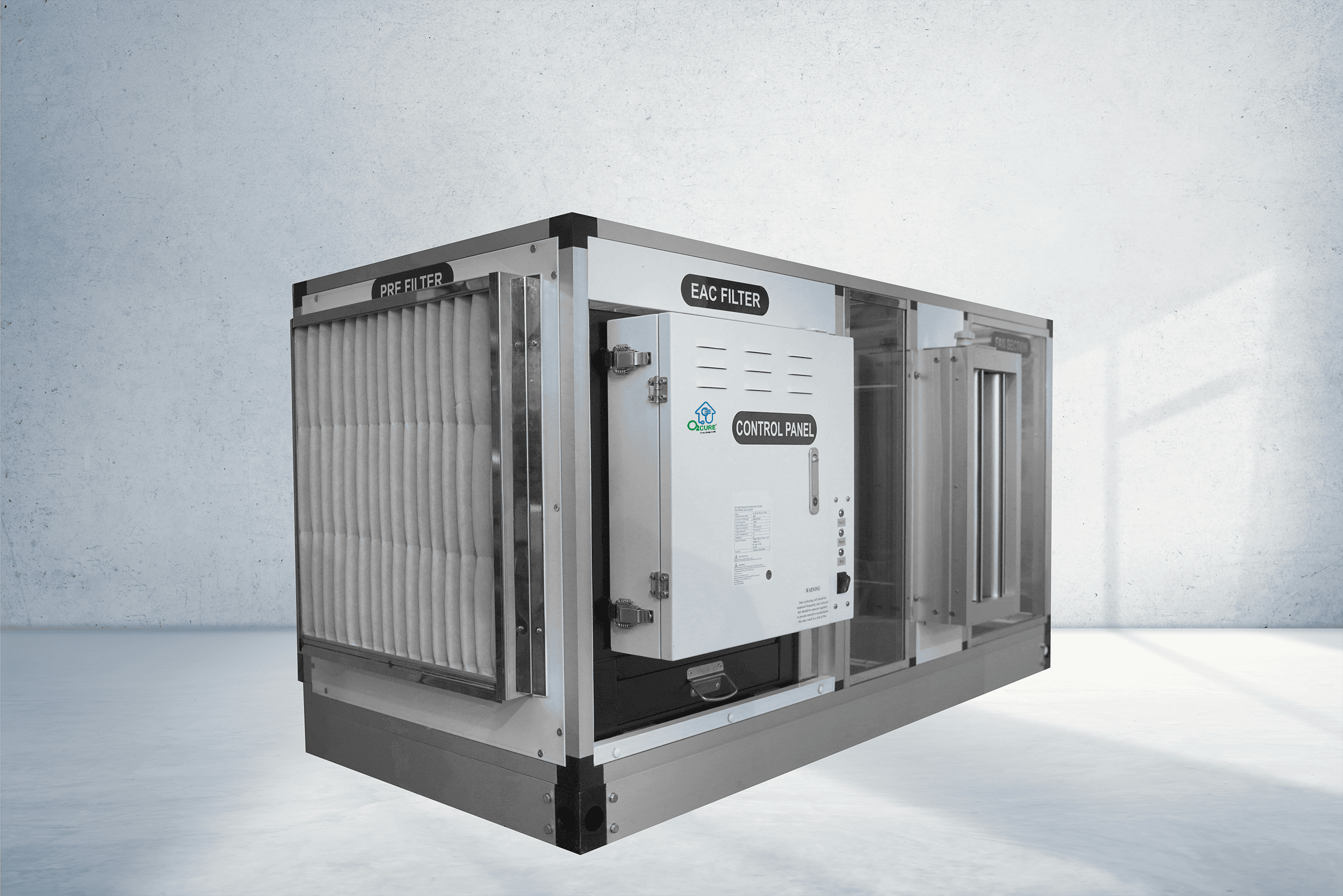

O₂Cure Kitchen Exhaust Dry Scrubber
Commercial kitchen exhaust purification — eliminates grease, smoke and cooking fumes before discharge.
What it does
Built to perform where air quality matters most.
O2Cure's Kitchen Exhaust Dry Scrubber is an advanced multi-stage purification system that processes contaminated kitchen exhaust air through pre-filter, ESP, activated carbon and fine filter stages before discharge. Built for commercial kitchens, cloud kitchens, food courts and industrial workshops.
4-Stage Dry Filtration
EU-4 pre-filter → ESP electrostatic precipitator → activated carbon → EU-7 fine filter. Each stage targets a different class of kitchen pollutant.
Electrostatic Precipitator (ESP)
Removes fine grease particles, smoke and cooking fumes through electrostatic charge — the core technology for commercial kitchen emission control.
Activated Carbon Odour Control
Adsorbs odours, VOCs and harmful gases produced during cooking — essential for kitchens in commercial buildings and food courts.
Optional UV-C Disinfection
An optional 180nm UV-C lamp can be added to neutralise biological contaminants including bacteria and viruses in the exhaust stream.
Performance at a glance
Performance metrics
- >90%
- Mist, smoke & odour elimination
- 700–80,000 CFM
- Airflow capacity range
- 4 Stages
- Filtration process stages
- EU-7
- Final filter grade
Specifications
The numbers, plainly.
- Airflow Capacity
- 700–80,000 CFM
- Material
- GI (Aluminium/SS-304 optional)
- Construction
- Double Skin Panel (50mm)
- Fan Type
- Direct Driven SISW Plug Fan
- Motor
- IE2/IE3/IE4 or BLDC
- Filters
- Pre-filter, ESP, Carbon, Fine (EU-7)
- UV-C Option
- 180nm lamp (optional)
- Base Frame
- Galvanised Steel, 80–100mm
Certifications
- Grease Removal
- Odour Control
- Commercial Grade
- Dry & Wet Options
Where it fits
Anywhere people breathe the same air for hours.
O₂Cure Kitchen Exhaust Dry Scrubber
Speak to our engineering team for a custom quote.
We size, supply and support the full installation — from site survey to AMC. Contact us for a no-obligation consultation.
